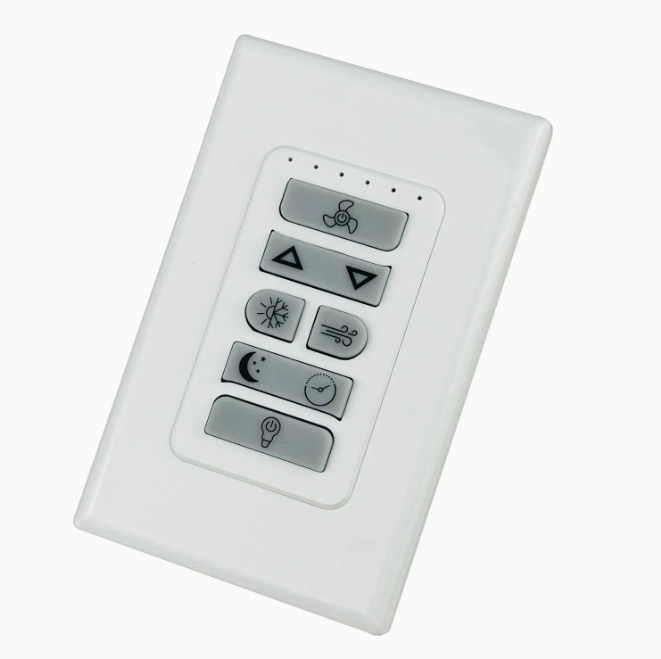

Ceiling Fan Light Wall Controller: recorded scope

Ceiling fan light wall-control listing with recorded F82/F89 references. Confirm wiring, command behavior and compatibility with the actual fan receiver. This page records what the listing currently states and separates it from what still has to be confirmed for your project. It is a working reference for an enquiry, not a released specification: the approved drawing revision, motor data and test plan take precedence over anything shown here.

What this listing records

Figures taken from a listing title are descriptive. They indicate the intended application; they do not establish the rated conditions of the unit supplied for your programme. Confirm them against the approved project configuration before quoting, sampling or designing around them.

Defining the control requirement

Where a listing does not yet name a motor, supply or protocol, the first task is to establish those three inputs. Most of the subsequent decision follows from them: the power stage, the sensing approach and the protection design all derive from the motor and its operating envelope.

• Motor type, voltage, current and speed range
• Supply architecture and the environment it operates in
• User controls and any remote or connected interface
• Target market, compliance scope and expected volume

What to confirm before sampling

These are the inputs the engineering team needs in order to turn this listing into a reviewable specification for fan remotes & controls.

• The receiver or control board this handset must pair with
• Command set, speed steps, timer and light functions in scope
• Radio band, pairing method and operating range in the installed product
• Battery type, button legend and enclosure finish required

Why this page does not quote full specifications

Publishing a numeric table that has not been traced to an approved drawing is worse than publishing none: a buyer can design a housing, a harness or a certification plan around a figure that was never verified. The parameters that decide whether this part fits your product – rated current under your load, thermal margin in your enclosure, connector pinout on your board revision, and the compliance scope for your market – are only meaningful once they are tied to a specific configuration.

What that means in practice is that the review is driven by your inputs rather than by a published table. Send the motor or load data, the available drawings and the target market, and the engineering team can respond with the specific values that apply to your build, together with the measurement conditions behind them. Where a figure cannot be supported for your configuration, the honest answer is to say so and propose the test that would establish it.

Application notes for this listing

Fan and light on one control

A combined fan and light control carries two loads with different characteristics. Light-control priority, the behaviour of one function while the other changes and the leakage limit with the light off are all part of the acceptance criteria.

• Priority between fan and light commands
• Leakage limit with the light switched off
• Smoothness of dimming at low levels, if dimming is in scope

Ceiling fan installation

A ceiling fan controller operates in a canopy above the blade set, which constrains both the space available and the radio environment for any remote function. Receiver placement and antenna orientation have to be evaluated with the canopy fitted.

• Space available inside the canopy
• Receiver placement and antenna keep-out
• Behaviour on a momentary power interruption

A handset is only half of a control system

Remotes are frequently sourced as a replacement part for an existing installation, or as an accessory for a board that is already fixed. In both cases the receiver defines what the handset can actually command. Button layout and legend are easy to compare; the command encoding, the pairing method and the light-function behaviour are where mismatches appear.

• Identify the receiver or board the handset must command
• Confirm whether re-pairing is possible in the field after replacement
• Agree the button legend and enclosure finish before tooling
• Test range with the receiver mounted in its final position

Where this type of part usually goes wrong

Where the motor, supply and protocol are not yet fixed, the risk is building against an assumption. The cheapest correction is to establish those three inputs before any hardware decision is made.

Validate once the three inputs are fixed

Until the motor, the supply and the command interface are established, there is no stable baseline to test against. Fix those three first, then agree the measurement points and the abnormal cases. Validation performed against a moving requirement produces results that cannot be reused.

Keep the requirement revision, the motor or load definition, the board and firmware revisions and the agreed acceptance criteria together. A change to any of the three inputs should reopen the requirement before it reopens the test plan.
