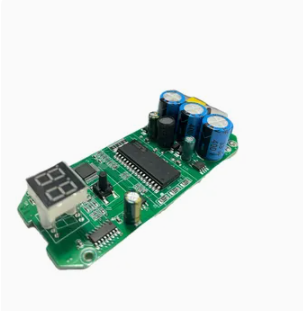

High-Voltage BLDC Water Pump Controller PCBA

Built for your product platform.

High-Voltage BLDC Water Pump Controller PCBA: recorded scope

High-Voltage BLDC Water Pump Controller PCBA. Review the pump motor, supply, hydraulic load and required protection response. This page records what the listing currently states and separates it from what still has to be confirmed for your project. It is a working reference for an enquiry, not a released specification: the approved drawing revision, motor data and test plan take precedence over anything shown here.

What this listing records

Figures taken from a listing title are descriptive. They indicate the intended application; they do not establish the rated conditions of the unit supplied for your programme. Confirm them against the approved project configuration before quoting, sampling or designing around them.

Pump load behaviour and protection

A pump presents a different load profile from a fan. Starting torque, the risk of running dry, and the consequence of a blocked impeller all shape the protection design. Protection thresholds set too tight will trip on normal transients; set too loose they will not protect the motor.

• Dry-run detection method and the delay before tripping
• Restart policy after a fault, and whether it is automatic or manual
• Over-current threshold relative to normal start-up inrush
• Sensor or sensorless feedback and its behaviour at low flow

What to confirm before sampling

These are the inputs the engineering team needs in order to turn this listing into a reviewable specification for pump controllers.

• Pump load curve, start-up torque and dry-run condition
• Feedback method available on the pump (sensor or sensorless)
• Protection and restart policy after a fault
• Duty cycle, fluid environment and enclosure rating

Why this page does not quote full specifications

Publishing a numeric table that has not been traced to an approved drawing is worse than publishing none: a buyer can design a housing, a harness or a certification plan around a figure that was never verified. The parameters that decide whether this part fits your product – rated current under your load, thermal margin in your enclosure, connector pinout on your board revision, and the compliance scope for your market – are only meaningful once they are tied to a specific configuration.

What that means in practice is that the review is driven by your inputs rather than by a published table. Send the motor or load data, the available drawings and the target market, and the engineering team can respond with the specific values that apply to your build, together with the measurement conditions behind them. Where a figure cannot be supported for your configuration, the honest answer is to say so and propose the test that would establish it.

Application notes for this listing

High-voltage construction

A high-voltage board brings creepage, clearance and isolation into the design review. These are construction decisions that cannot be corrected in firmware, and they determine which safety standards the finished product can be assessed against.

• Creepage and clearance for the target supply
• Isolation barrier and its rated voltage
• The safety standard the finished product will be assessed against

Pump duty

A pump controller is specified against a hydraulic load, not a fan load. Start-up torque, the risk of running dry and the consequence of a blocked impeller shape the protection design, and the thresholds have to be set from a measured start profile.

• Measured start-up and running current
• Dry-run detection method and response delay
• Restart policy after a fault

Board-level supply

Supplied as a board, the product has to fit an envelope you already control. The interface contract – outline, fixings, connectors, programming access and test access – is the first thing to settle, because it decides whether the board can be assembled and tested at all.

• Board outline and fixing points
• Connector schedule and mating harness
• Programming and test access with the housing fitted

Protection thresholds have to tolerate a normal start

A pump motor draws a large current surge at start, then settles to a much lower running current. Over-current protection must sit above the legitimate start transient and below the level that damages the winding. Dry-run protection has the same shape of problem: it must react before the pump overheats, but not trip on a brief air pocket.

• Record the actual start-up current profile for the pump in question
• Set the over-current threshold against that measured profile
• Agree the dry-run detection method and its response delay
• Decide whether restart after a fault is automatic or requires a reset

Where this type of part usually goes wrong

Pump controllers are usually let down by thresholds rather than by hardware. Protection set from a nameplate rating rather than a measured start profile will either nuisance-trip on every start or fail to protect the motor. Measure the actual profile first.

Validate against a measured start profile

Record the pump start-up current and the running current on the actual hydraulic load before setting any protection threshold. Then demonstrate each protection against that measured profile: a deliberate dry run, a blocked impeller and a power interruption in the middle of a cycle. A protection function that cannot be demonstrated is not a protection function.

Keep the measured current profile, the threshold settings, the pump and controller revisions and the results of each abnormal test in one record. A change to the pump, the impeller or the hydraulic circuit changes the profile and should trigger a review of the thresholds.
