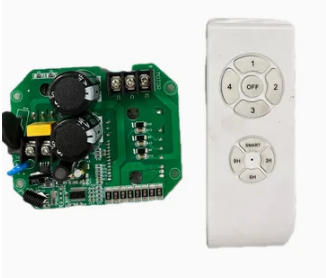

Oscillating Propeller Fan Controller PCBA

Built for your product platform.

Oscillating Propeller Fan Controller PCBA: recorded scope

Oscillating Propeller Fan Controller PCBA. Compare the motor, supply, control interface and required operating functions. This page records what the listing currently states and separates it from what still has to be confirmed for your project. It is a working reference for an enquiry, not a released specification: the approved drawing revision, motor data and test plan take precedence over anything shown here.

What this listing records

Figures taken from a listing title are descriptive. They indicate the intended application; they do not establish the rated conditions of the unit supplied for your programme. Confirm them against the approved project configuration before quoting, sampling or designing around them.

Board-level scope for an OEM programme

A controller PCBA sits inside a mechanical envelope you already control. The useful starting point is therefore the interface contract: what signals cross the board boundary, what powers it, and what has to fit around it. Firmware scope should be settled at the same time, because it determines test access and programming method.

• Board outline, fixing points and connector positions
• Signal and power interfaces at the board boundary
• Firmware ownership and the programming interface required
• In-circuit and functional test access on the assembled board

What to confirm before sampling

These are the inputs the engineering team needs in order to turn this listing into a reviewable specification for bldc controllers.

• Motor voltage, phase current, pole count and back-EMF profile
• Speed range, start-up condition and reversing behaviour
• Protection thresholds for locked rotor, over-current and over-temperature
• Board outline, connector pinout and mounting arrangement

Why this page does not quote full specifications

Publishing a numeric table that has not been traced to an approved drawing is worse than publishing none: a buyer can design a housing, a harness or a certification plan around a figure that was never verified. The parameters that decide whether this part fits your product – rated current under your load, thermal margin in your enclosure, connector pinout on your board revision, and the compliance scope for your market – are only meaningful once they are tied to a specific configuration.

What that means in practice is that the review is driven by your inputs rather than by a published table. Send the motor or load data, the available drawings and the target market, and the engineering team can respond with the specific values that apply to your build, together with the measurement conditions behind them. Where a figure cannot be supported for your configuration, the honest answer is to say so and propose the test that would establish it.

Application notes for this listing

Oscillation mechanisms

Oscillation adds a second motor and a mechanical linkage to the control problem. The control has to drive the oscillation motor without disturbing fan speed, and the linkage has its own end-stop behaviour that the firmware should respect rather than fight.

• Oscillation motor voltage and current
• End-stop detection or a timed reversal policy
• Behaviour when oscillation is toggled while the fan is running

Board-level supply

Supplied as a board, the product has to fit an envelope you already control. The interface contract – outline, fixings, connectors, programming access and test access – is the first thing to settle, because it decides whether the board can be assembled and tested at all.

• Board outline and fixing points
• Connector schedule and mating harness
• Programming and test access with the housing fitted

Controller selection starts with the motor, not the board

A controller board is matched to a motor, so the motor data is the first deliverable rather than the board photograph. Winding resistance sets the current the power stage must carry at standstill; the back-EMF constant sets how much voltage the motor needs at speed; pole count and commutation method set the timing the firmware has to follow. Two boards with the same headline power rating can behave very differently on the same motor.

• Ask for the motor data sheet before comparing controller options
• Measure start-up current on the actual load, not a free-running motor
• Establish the minimum speed at which the application must remain stable
• Confirm which protections are enforced in hardware and which in firmware

Where this type of part usually goes wrong

Board-level projects go wrong at the interface boundary: a connector that does not fit the existing harness, a programming pad that cannot be reached with the housing fitted, or a test point that is inaccessible on the assembled unit. These are mechanical and layout decisions, and they are expensive to correct after tooling.

Validate the interface contract before the electronics

The first acceptance question for a board-level product is mechanical and electrical fit: does it seat, do the connectors mate, can it be programmed and can it be tested with the housing assembled. Confirm those before spending time on performance, because a board that cannot be assembled is a board that cannot be validated.

Keep the layout revision, the connector schedule, the programming and test access method and the approved BOM together. A change to a connector, a component package or a test point is a change to the interface contract and should be reviewed before production data is released.
