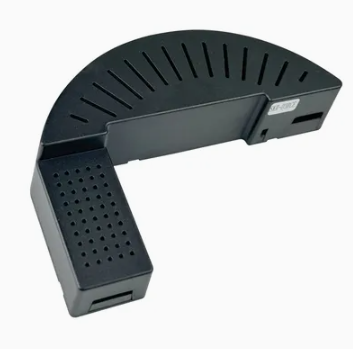

Ceiling Fan Light Control PCBA

Built for your product platform.

Ceiling Fan Light Control PCBA: recorded scope

Ceiling Fan Light Control PCBA. Compare the motor, supply, control interface and required operating functions. This page records what the listing currently states and separates it from what still has to be confirmed for your project. It is a working reference for an enquiry, not a released specification: the approved drawing revision, motor data and test plan take precedence over anything shown here.

What this listing records

Figures taken from a listing title are descriptive. They indicate the intended application; they do not establish the rated conditions of the unit supplied for your programme. Confirm them against the approved project configuration before quoting, sampling or designing around them.

Board-level scope for an OEM programme

A controller PCBA sits inside a mechanical envelope you already control. The useful starting point is therefore the interface contract: what signals cross the board boundary, what powers it, and what has to fit around it. Firmware scope should be settled at the same time, because it determines test access and programming method.

• Board outline, fixing points and connector positions
• Signal and power interfaces at the board boundary
• Firmware ownership and the programming interface required
• In-circuit and functional test access on the assembled board

What to confirm before sampling

These are the inputs the engineering team needs in order to turn this listing into a reviewable specification for ceiling fan inverters.

• Rated input voltage and the fan motor the inverter will drive
• Lighting load, dimming method and light-control priority
• Wall-control, remote or receiver interface expectations
• Thermal path and enclosure space around the board

Why this page does not quote full specifications

Publishing a numeric table that has not been traced to an approved drawing is worse than publishing none: a buyer can design a housing, a harness or a certification plan around a figure that was never verified. The parameters that decide whether this part fits your product – rated current under your load, thermal margin in your enclosure, connector pinout on your board revision, and the compliance scope for your market – are only meaningful once they are tied to a specific configuration.

What that means in practice is that the review is driven by your inputs rather than by a published table. Send the motor or load data, the available drawings and the target market, and the engineering team can respond with the specific values that apply to your build, together with the measurement conditions behind them. Where a figure cannot be supported for your configuration, the honest answer is to say so and propose the test that would establish it.

Application notes for this listing

Fan and light on one control

A combined fan and light control carries two loads with different characteristics. Light-control priority, the behaviour of one function while the other changes and the leakage limit with the light off are all part of the acceptance criteria.

• Priority between fan and light commands
• Leakage limit with the light switched off
• Smoothness of dimming at low levels, if dimming is in scope

Ceiling fan installation

A ceiling fan controller operates in a canopy above the blade set, which constrains both the space available and the radio environment for any remote function. Receiver placement and antenna orientation have to be evaluated with the canopy fitted.

• Space available inside the canopy
• Receiver placement and antenna keep-out
• Behaviour on a momentary power interruption

Board-level supply

Supplied as a board, the product has to fit an envelope you already control. The interface contract – outline, fixings, connectors, programming access and test access – is the first thing to settle, because it decides whether the board can be assembled and tested at all.

• Board outline and fixing points
• Connector schedule and mating harness
• Programming and test access with the housing fitted

The inverter, the lamp and the wall control form one system

A ceiling fan inverter usually carries both motor and lighting functions, and those two functions interact. Dimming behaviour, light-off leakage current and the priority between a wall switch and a remote all have to be decided together. A board that performs well on a bench with a resistive load can behave differently on a lamp with its own driver electronics.

• State the lamp type and its driver topology, not only the wattage
• Decide light-control priority between wall switch, remote and app
• Confirm behaviour on a momentary power interruption
• Agree the leakage limit that applies with the light switched off

Where this type of part usually goes wrong

Board-level projects go wrong at the interface boundary: a connector that does not fit the existing harness, a programming pad that cannot be reached with the housing fitted, or a test point that is inaccessible on the assembled unit. These are mechanical and layout decisions, and they are expensive to correct after tooling.

Validate the interface contract before the electronics

The first acceptance question for a board-level product is mechanical and electrical fit: does it seat, do the connectors mate, can it be programmed and can it be tested with the housing assembled. Confirm those before spending time on performance, because a board that cannot be assembled is a board that cannot be validated.

Keep the layout revision, the connector schedule, the programming and test access method and the approved BOM together. A change to a connector, a component package or a test point is a change to the interface contract and should be reviewed before production data is released.
