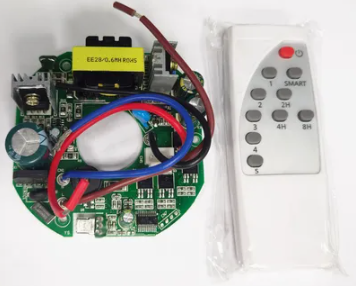

Solar Ceiling Fan BLDC Motor Controller PCBA

Built for your product platform.

Solar Ceiling Fan BLDC Motor Controller PCBA: recorded scope

Solar ceiling-fan controller listing. Define the energy source, motor and storage arrangement; confirm electrical limits for the actual solar architecture. This page records what the listing currently states and separates it from what still has to be confirmed for your project. It is a working reference for an enquiry, not a released specification: the approved drawing revision, motor data and test plan take precedence over anything shown here.

What this listing records

Figures taken from a listing title are descriptive. They indicate the intended application; they do not establish the rated conditions of the unit supplied for your programme. Confirm them against the approved project configuration before quoting, sampling or designing around them.

Supply variability and low-voltage operation

A solar-powered fan operates from a supply that varies through the day. The controller has to remain predictable at both ends: it should not stall at low input, and it should not exceed device ratings at peak. Behaviour at the transition points matters more than the nominal rating.

• Input voltage window and behaviour at the low end
• Start-up attempt policy when input is marginal
• Panel or battery configuration the controller expects
• Thermal behaviour during sustained mid-day operation

What to confirm before sampling

These are the inputs the engineering team needs in order to turn this listing into a reviewable specification for ceiling fan inverters.

• Rated input voltage and the fan motor the inverter will drive
• Lighting load, dimming method and light-control priority
• Wall-control, remote or receiver interface expectations
• Thermal path and enclosure space around the board

Why this page does not quote full specifications

Publishing a numeric table that has not been traced to an approved drawing is worse than publishing none: a buyer can design a housing, a harness or a certification plan around a figure that was never verified. The parameters that decide whether this part fits your product – rated current under your load, thermal margin in your enclosure, connector pinout on your board revision, and the compliance scope for your market – are only meaningful once they are tied to a specific configuration.

What that means in practice is that the review is driven by your inputs rather than by a published table. Send the motor or load data, the available drawings and the target market, and the engineering team can respond with the specific values that apply to your build, together with the measurement conditions behind them. Where a figure cannot be supported for your configuration, the honest answer is to say so and propose the test that would establish it.

Application notes for this listing

Solar-powered operation

A solar fan runs from a supply that moves through the day. The controller has to stay predictable at both ends of that range, and the low end is where products most often fail in the field because it is the least carefully specified.

• Panel or battery configuration and cable length
• Behaviour and start-up policy at low input
• Thermal behaviour during sustained mid-day operation

Ceiling fan installation

A ceiling fan controller operates in a canopy above the blade set, which constrains both the space available and the radio environment for any remote function. Receiver placement and antenna orientation have to be evaluated with the canopy fitted.

• Space available inside the canopy
• Receiver placement and antenna keep-out
• Behaviour on a momentary power interruption

Board-level supply

Supplied as a board, the product has to fit an envelope you already control. The interface contract – outline, fixings, connectors, programming access and test access – is the first thing to settle, because it decides whether the board can be assembled and tested at all.

• Board outline and fixing points
• Connector schedule and mating harness
• Programming and test access with the housing fitted

The inverter, the lamp and the wall control form one system

A ceiling fan inverter usually carries both motor and lighting functions, and those two functions interact. Dimming behaviour, light-off leakage current and the priority between a wall switch and a remote all have to be decided together. A board that performs well on a bench with a resistive load can behave differently on a lamp with its own driver electronics.

• State the lamp type and its driver topology, not only the wattage
• Decide light-control priority between wall switch, remote and app
• Confirm behaviour on a momentary power interruption
• Agree the leakage limit that applies with the light switched off

Where this type of part usually goes wrong

Solar-powered products tend to fail at the edges of the input window. Behaviour at low input is often unspecified, so the unit stalls on an overcast morning and the customer reports a dead product. Specify and test the low-input behaviour explicitly.

Validate across the whole input window

Test at the top, the middle and the bottom of the input range, and specifically at the low end, because that is where behaviour is least often specified. Confirm start-up attempts, speed stability and thermal behaviour during sustained operation at mid-day input. A unit that performs at nominal and stalls at low input is not ready.

Keep the panel or battery configuration, the input window, the measured behaviour at each test point and any accepted limitations together. A change to the panel, the wiring length or the battery chemistry changes the input conditions and should be re-validated at the low end.
