60-66W RF AC/DC Ceiling Fan Control PCBA

Built for your product platform.

60-66W RF AC/DC Ceiling Fan Control PCBA: recorded scope

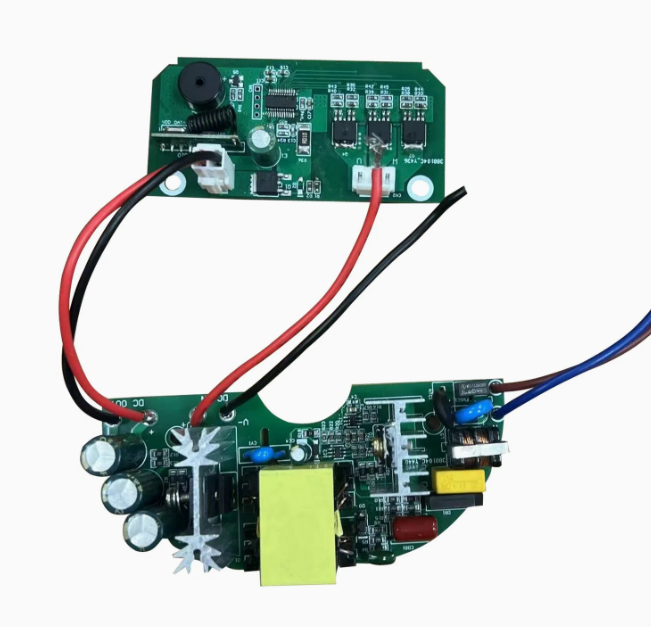

60–66W split-design fan control PCBA listing with recorded B40 reference. Review inter-board wiring, mounting and the intended RF control arrangement. This page records what the listing currently states and separates it from what still has to be confirmed for your project. It is a working reference for an enquiry, not a released specification: the approved drawing revision, motor data and test plan take precedence over anything shown here.

What this listing records

Figures taken from a listing title are descriptive. They indicate the intended application; they do not establish the rated conditions of the unit supplied for your programme. Confirm them against the approved project configuration before quoting, sampling or designing around them.

Radio pairing and range in the installed product

RF control performance is a property of the complete assembly rather than of the handset alone. The antenna orientation, the metal mass of the fan body, the battery condition and the receiver placement inside the canopy all influence usable range. A bench test between a handset and a bare receiver will overstate what the finished product achieves.

• Radio band, channel plan and coexistence with nearby equipment
• Pairing and learning procedure, including re-pairing after replacement
• Operating range measured with the receiver inside the canopy
• Antenna keep-out area on the receiver board layout

What to confirm before sampling

These are the inputs the engineering team needs in order to turn this listing into a reviewable specification for ceiling fan inverters.

• Rated input voltage and the fan motor the inverter will drive
• Lighting load, dimming method and light-control priority
• Wall-control, remote or receiver interface expectations
• Thermal path and enclosure space around the board

Why this page does not quote full specifications

Publishing a numeric table that has not been traced to an approved drawing is worse than publishing none: a buyer can design a housing, a harness or a certification plan around a figure that was never verified. The parameters that decide whether this part fits your product – rated current under your load, thermal margin in your enclosure, connector pinout on your board revision, and the compliance scope for your market – are only meaningful once they are tied to a specific configuration.

What that means in practice is that the review is driven by your inputs rather than by a published table. Send the motor or load data, the available drawings and the target market, and the engineering team can respond with the specific values that apply to your build, together with the measurement conditions behind them. Where a figure cannot be supported for your configuration, the honest answer is to say so and propose the test that would establish it.

The figures named in this listing (66 W) describe the intended application class. Treat them as a starting point for the conversation, and confirm the rated conditions – input, load, duty cycle and ambient – before they are used in a design decision or a quotation.

Application notes for this listing

Ceiling fan installation

A ceiling fan controller operates in a canopy above the blade set, which constrains both the space available and the radio environment for any remote function. Receiver placement and antenna orientation have to be evaluated with the canopy fitted.

• Space available inside the canopy
• Receiver placement and antenna keep-out
• Behaviour on a momentary power interruption

Board-level supply

Supplied as a board, the product has to fit an envelope you already control. The interface contract – outline, fixings, connectors, programming access and test access – is the first thing to settle, because it decides whether the board can be assembled and tested at all.

• Board outline and fixing points
• Connector schedule and mating harness
• Programming and test access with the housing fitted

The inverter, the lamp and the wall control form one system

A ceiling fan inverter usually carries both motor and lighting functions, and those two functions interact. Dimming behaviour, light-off leakage current and the priority between a wall switch and a remote all have to be decided together. A board that performs well on a bench with a resistive load can behave differently on a lamp with its own driver electronics.

• State the lamp type and its driver topology, not only the wattage
• Decide light-control priority between wall switch, remote and app
• Confirm behaviour on a momentary power interruption
• Agree the leakage limit that applies with the light switched off

Where this type of part usually goes wrong

Range is the usual disappointment. A handset tested against a bare receiver on a bench will comfortably exceed the range achieved with the receiver installed inside a metal canopy. Agree the acceptance test with the receiver in its final mechanical position, otherwise the first field complaint will be about range.

Validate with the receiver in its final place

Radio acceptance is only meaningful when the receiving end sits where it will sit in the product. Build the mechanical assembly, install the receiver, fit the canopy and then measure. Record the battery voltage at which each function was confirmed, because a handset that works on a fresh cell and fails on a weak one will generate returns that are hard to diagnose remotely.

Keep the pairing record, the receiver and handset revisions, the measured range under the agreed geometry and the battery condition in one place. A change to the receiver layout, the antenna or the canopy material should be treated as a change to the radio system and re-validated.
