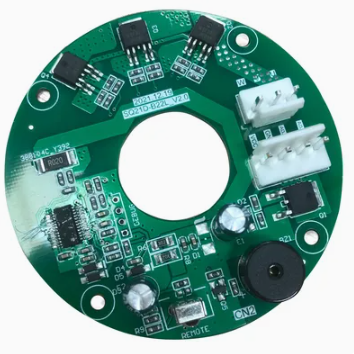

12V DC BLDC Ceiling Fan PCB Circuit Board

Built for your product platform.

12V DC BLDC Ceiling Fan PCB Circuit Board: recorded scope

12V DC BLDC Ceiling Fan PCB Circuit Board. Compare the motor, supply, control interface and required operating functions. This page records what the listing currently states and separates it from what still has to be confirmed for your project. It is a working reference for an enquiry, not a released specification: the approved drawing revision, motor data and test plan take precedence over anything shown here.

What this listing records

Figures taken from a listing title are descriptive. They indicate the intended application; they do not establish the rated conditions of the unit supplied for your programme. Confirm them against the approved project configuration before quoting, sampling or designing around them.

Motor matching before board selection

A BLDC controller is only meaningful in relation to a specific motor. Winding resistance, back-EMF constant, pole count and the commutation method all determine whether the board can start the motor reliably and hold speed under load. Selecting a board from a power rating alone is the most common source of prototype failure.

• Motor data sheet, or a representative sample for measurement
• Commutation method: Hall sensor or sensorless
• Speed regulation method and the tolerance required
• Behaviour under sudden load change and at minimum speed

What to confirm before sampling

These are the inputs the engineering team needs in order to turn this listing into a reviewable specification for ceiling fan inverters.

• Rated input voltage and the fan motor the inverter will drive
• Lighting load, dimming method and light-control priority
• Wall-control, remote or receiver interface expectations
• Thermal path and enclosure space around the board

Why this page does not quote full specifications

Publishing a numeric table that has not been traced to an approved drawing is worse than publishing none: a buyer can design a housing, a harness or a certification plan around a figure that was never verified. The parameters that decide whether this part fits your product – rated current under your load, thermal margin in your enclosure, connector pinout on your board revision, and the compliance scope for your market – are only meaningful once they are tied to a specific configuration.

What that means in practice is that the review is driven by your inputs rather than by a published table. Send the motor or load data, the available drawings and the target market, and the engineering team can respond with the specific values that apply to your build, together with the measurement conditions behind them. Where a figure cannot be supported for your configuration, the honest answer is to say so and propose the test that would establish it.

The figures named in this listing (12 V) describe the intended application class. Treat them as a starting point for the conversation, and confirm the rated conditions – input, load, duty cycle and ambient – before they are used in a design decision or a quotation.

Application notes for this listing

Ceiling fan installation

A ceiling fan controller operates in a canopy above the blade set, which constrains both the space available and the radio environment for any remote function. Receiver placement and antenna orientation have to be evaluated with the canopy fitted.

• Space available inside the canopy
• Receiver placement and antenna keep-out
• Behaviour on a momentary power interruption

The inverter, the lamp and the wall control form one system

A ceiling fan inverter usually carries both motor and lighting functions, and those two functions interact. Dimming behaviour, light-off leakage current and the priority between a wall switch and a remote all have to be decided together. A board that performs well on a bench with a resistive load can behave differently on a lamp with its own driver electronics.

• State the lamp type and its driver topology, not only the wattage
• Decide light-control priority between wall switch, remote and app
• Confirm behaviour on a momentary power interruption
• Agree the leakage limit that applies with the light switched off

Where this type of part usually goes wrong

The recurring problem is a board selected from a power rating and then found not to start the actual motor reliably. Back-EMF constant and winding resistance matter more than the headline wattage, and low-speed stability has to be demonstrated on the real load.

Validate on the real motor, not a substitute

Record start-up on the actual motor under the actual load, minimum stable speed, speed regulation across the range and behaviour under a sudden load change. Confirm which protections are enforced in hardware and which depend on firmware, because that determines what happens if the firmware stops executing.

Keep the motor data, the controller and firmware revision, the load setup, the measurement points and the acceptance figures in one record. A change to the motor, the winding or the load profile should trigger a re-validation, since the controller was tuned against the original.
